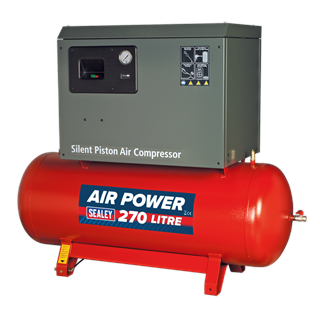

Compressor 270L Belt Drive 7.5hp 3ph 2-Stage with Cast Cylinders Low Noise

£4,609.99 GBP
£4,609.99 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Delivery in 1-3 working days (Mainland only)

• Air Displacement: 32.6cfm(924L/min).

• Maximum Free Air Delivery: 23.6cfm(668L/min).

• Maximum Pressure: 145psi(10bar).

• Heavy-duty low noise compressor suitable for garage, bodyshop and industrial applications.

• Fitted with cast iron cylinder head enabling slower revving and improved pump life.

• Fully enclosed, insulated design gives quiet running at just 66dB(A) (at 1m) and protects vital components from damage.

• Features fully automatic pressure cut-out switch and tank pressure gauge.

• Heavy-duty 3-phase electric motor with soft start feature.

• Control box features tachometer for monitoring use and optimizing service times.

• This item is heavy. Extra assistance must be provided at the delivery point to help its safe delivery.

Instructions

Safety Data

Parts Diagram

Air Displacement cfm(L/min): 32.6(924)
Maximum Free Air Delivery cfm(L/min): 23.6(668)
Maximum Pressure: 145psi(10bar)
Minimum Rated Supply: 32A
Motor Output: 7.5hp
Nett Weight: 213kg
Noise Level: 66dB(A)
Oil Capacity: 1.57L
Outlet: 1/2"BSP Female Tap
Phase: 3ph
Receiver Capacity: 270L
Size (W x D x H): 1550 x 600 x 1260mm
Motor Output: 7.5hp
Supply: 415V
Phase: 3ph
Minimum Rated Supply: 32A
Speed: 1280rpm
Noise Level: 66dB(A)
Air Displacement cfm(L/min): 32.6(924)
Maximum Free Air Delivery: 23.6(668)
Maximum Pressure: 145psi(10bar)
Receiver Capacity: 270L
Outlet: 1/2" BSP Female Tap
Size (W x D x H): 1550 x 600 x 1260mm
Weight: 213kg
Speed: 1280rpm
Supply: 415V
